continue with the tutorial yesterday
We will move into the piston Conrod> Soft Panel click (arrow 1)> select
Offer Type = Translate (arrow 2)> click on the Conrod his left> drag to the right, for example
The second restriction will be made from Conrod of the first constraint is the
into the pin hole on the piston, the second constraint to the distance 62
mm from outside the engine block on the Conrod, we turn the point of view by clicking on the icon
Orient Mode on / off> then take a pointer to their> press the middle mouse button
> Turn the part as shown below, the Orient Mode icon press on / off again
to retirement.

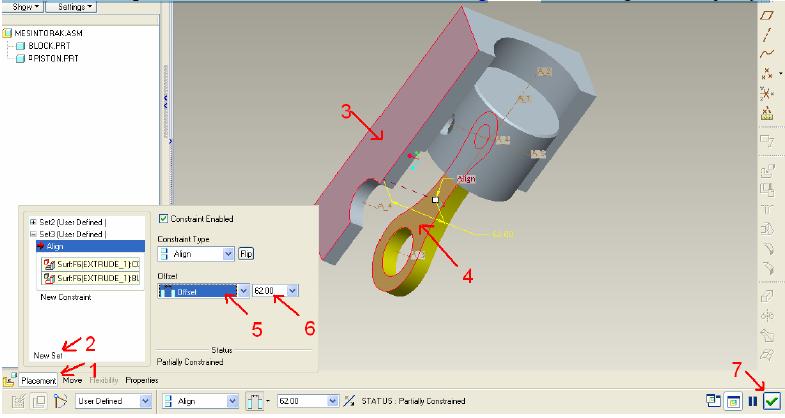

Click the Placement Panel (arrow 1)> New Set click to send restricted in two (arrows
2)> click on the first reference to the outside of the engine block (arrow 3)> for reference
The second click on the outside of the Conrod (arrow 4)> select Offset (arrow 5)> enter the distance
offset 62 mm (arrow 6)> then click the check mark next to
We will be the last part (Crank) into the assembly system, starting with
click on the "Enter the assembly component" in the toolbar right-> dialogWe will see Open> select crank.prt> then click Open
continued
